Elegant hinged doors with wider thermal breaks for extreme weather performance. German G-U lock systems with non-return drainage and reinforced hinges.
The 67T Series Casement Door features reinforced hinges that withstand greater door weight, with wider thermal break parts to meet extreme weather requirements. German G-U lock seat ensures firmness after locking. Non-return drainage system prevents bugs and pests from entering.
| Profile Thickness | 2.0mm |
| Profile Depth | 67mm |
| Standard Glass | 5mm Low-E + 15Argon + 5mm Tempered Clear Glass |
| Optional Glass | 5mm + 9Argon + 5mm + 9Argon + 5mm Tempered Clear Glass |
| Standard Hardware | GU |
| Optional Hardware | HK Kinlong |
| Minimum Size | 600×1200mm / 23.62×47.24 inch |
| Maximum Size | 1200×3200mm / 47.24×125.98 inch |
| Flyscreen | Retractable Flyscreen |
| Installation | Nail Fin / Bracket / Screw |

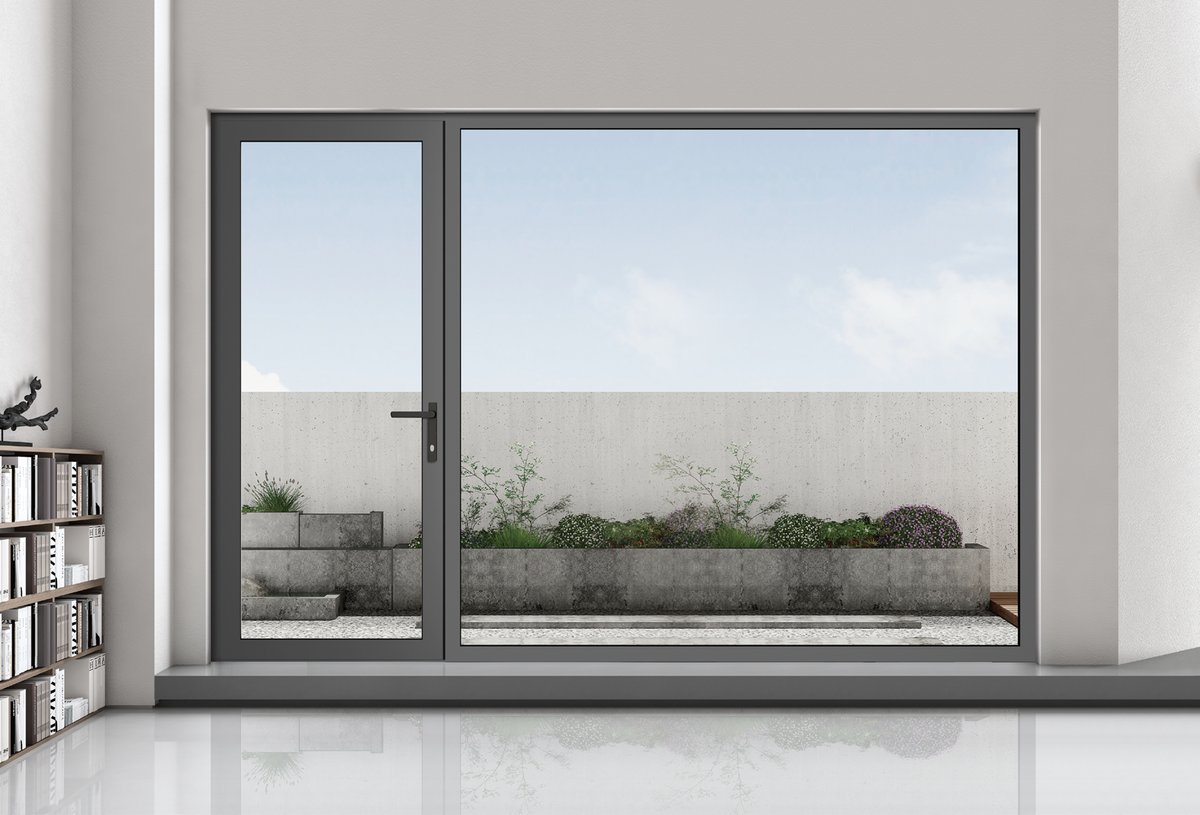

The 78T Series offers deeper 78.3mm profile with triple glazing option that greatly improves heat preservation performance. Hidden drainage design is both aesthetic and practical. EPDM strip alleviates impact resistance for a more sealed design. Military-grade fortitude with massive load-bearing strength and advanced thermal barrier efficiency.
| Profile Thickness | 2.0mm |
| Profile Depth | 78.3mm |
| Standard Glass | 5mm Low-E + 27Argon + 5mm Tempered Clear Glass |
| Optional Glass | 5mm + 15Argon + 5mm + 15Argon + 5mm Tempered Clear Glass |
| Standard Hardware | GU |
| Optional Hardware | HK Kinlong |
| Minimum Size | 600×1200mm / 23.62×47.24 inch |
| Maximum Size | 1200×3200mm / 47.24×125.98 inch |
| Flyscreen | Retractable Flyscreen |
| Installation | Nail Fin / Bracket / Screw |
Contact us for a free estimate on our Casement Doors. Custom sizes available for any project.
