Awning Windows
Top-hinged windows that open outward, allowing ventilation even during rain. Available from standard residential to heavy-duty commercial grades. Miami-Dade rated and ENERGY STAR ready.
Top-hinged windows that open outward, allowing ventilation even during rain. Available from standard residential to heavy-duty commercial grades. Miami-Dade rated and ENERGY STAR ready.
67T Series
Standard Residential Awning
The 67T Series Awning features self-lubricating stainless steel hinges (ASTM A276) supporting 150lbs with 50,000+ cycles. 9/16" glazing depth accommodates argon-filled IGUs (U ≤ 0.28, ENERGY STAR). Integrated magnetic fiberglass mesh retractable screen (AAMA 303) blocks 90% UV.
| Specification | Details |
|---|---|
| Profile Thickness | 1.6mm |
| Profile Depth | 67mm |
| Glass | 5mm Low-E + 15Argon + 5mm |
| Optional Glass | 5mm + 9Argon + 5mm + 9Argon + 5mm |
| Hardware | GU / HK Kinlong |
| Min Size | 350 × 450mm / 13.78 × 15.75in |
| Max Size | 1200 × 2400mm / 47.24 × 94.49in |
| Flyscreen | Retractable |
| Installation | Nail Fin / Bracket / Screw |
78T Series
Enhanced Residential Awning
The 78T Series offers deeper 78.3mm profile with 27mm argon cavity. Low maintenance anodized/powder-coated finishes resist corrosion. Modular designs fit openings from 14" to 48" width. Certified safety glazing (AS/NZS 4666) and 5,000+ open/close cycles (ASTM E283).
| Specification | Details |
|---|---|
| Profile Thickness | 1.6mm |
| Profile Depth | 78.3mm |
| Glass | 5mm Low-E + 27Argon + 5mm |
| Optional Glass | 5mm + 15Argon + 5mm + 15Argon + 5mm |
| Hardware | GU / HK Kinlong |
| Min Size | 350 × 450mm / 13.78 × 15.75in |
| Max Size | 1200 × 2400mm / 47.24 × 94.49in |
| Flyscreen | Retractable |
| Installation | Nail Fin / Bracket / Screw |

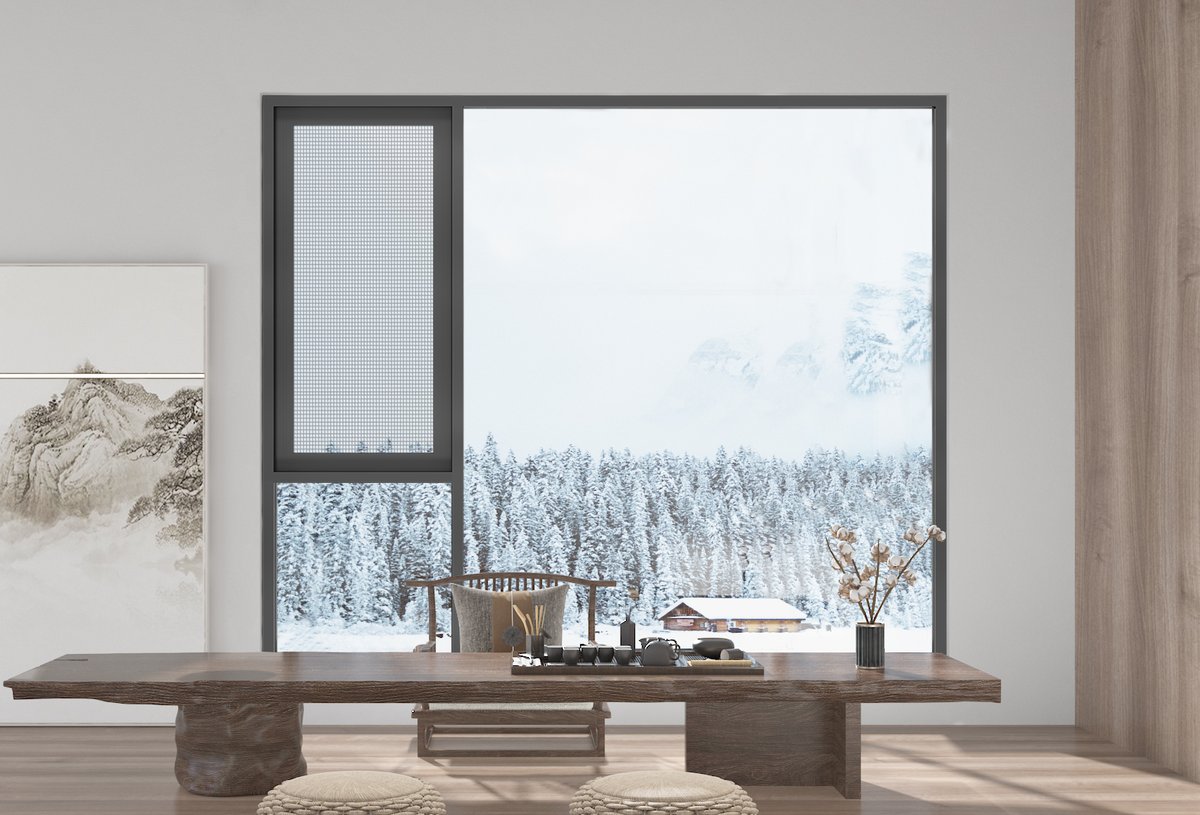

100T Series
Commercial Grade Awning
The commercial-grade 100T Series features a 102mm profile depth with 2.0mm wall thickness and thickened fixed angles for maximum durability. German G-U handles and G-U hardware hinges provide exceptional load-bearing stability and precision operation. Optional 48 mesh screen or stainless steel screen.
| Specification | Details |
|---|---|
| Profile Thickness | 2.0mm |
| Profile Depth | 102mm |
| Glass | 5mm + 12A + 5mm Tempered Clear |
| Optional Glass | 6mm + 12A + 6mm Tempered Clear |
| Hardware | China window winder chain |
| Min Size | 500 × 500mm / 19.69 × 19.69in |
| Max Size | 1300 × 2400mm / 51.18 × 94.49in |
| Flyscreen | Fiber Glass / 0.3 & 0.5mm S.S / Aluminium Mesh |
| Installation | NailFin / Bracket / Screw |
150T Series
Heavy-Duty Commercial Awning
The heavy-duty 150T Series has the deepest 153mm profile with 2.0mm wall thickness. NFRC U-factor 0.25 with dual Low-E coatings and warm-edge spacers. Heavy-duty stainless steel hinges (NFRC 100-2025) support 200lbs with 100,000-cycle durability. AAMA 2605-compliant frame withstands 150mph winds (ASTM E330).
| Specification | Details |
|---|---|
| Profile Thickness | 2.0mm |
| Profile Depth | 153mm |
| Glass | 5mm + 12A + 5mm Tempered Clear |
| Optional Glass | 6mm + 12A + 6mm Tempered Clear |
| Hardware | China window winder chain |
| Min Size | 500 × 500mm / 19.69 × 19.69in |
| Max Size | 1300 × 2400mm / 51.18 × 94.49in |
| Flyscreen | Fiber Glass / 0.3 & 0.5mm S.S / Aluminium Mesh |
| Installation | Subsill & sub head with L angle or T-fin & sub sill & timber reveal |
Get a free, no-obligation estimate for your awning window project. Our team will help you choose the perfect series for your needs.
